Pulse -- 2013工業乙太網解決方案

新加坡商普思電子有限公司（NYSE：PULS），是電子元件供應商的領導者，2013推出一系列工業乙太網的解決方案，透過乙太網傳輸電源(POE)的部份，普思電子針對大功率有一系列的變壓器規格可供設計者選擇，亦有CAT5e、CAT6的解決方案及高整合度的網路接口模組系列，規格完整齊全。

解決方案特點：

•         工業等級工作溫度範圍

•         ESD 防護

•         6KV電壓突波防護

•         高整合度集成方案

•         大功率乙太網路電源傳輸

標準料號方案有如下：

•         10/100 TX Single extended temp

(1)HX0068ANL ：Low profile 、Auto MDIX

(2)HX1188NL ：TC架構

(3)HX1198NL ：CT架構

•         10/100 TX PoE

(1)Single Port

•         H1187NL：1x Transformer only

•         H1197NL   ：2x Transformer only

•         H2019NL   ：2x Transformer + Shared Choke

•         HX2019NL        ：2x Transformer + Shared Choke

•         HX2326NL        ：2x Transformer/3 Wires Choke +Auto-Transformer

(2)Dual Port

•         H2005ANL：2 x Transformer + Auto-Transformer

•         H2006ANL：2 x Transformer + Shared Choke

•         H2009NL： 2 x Transformer Auto-Transformer (Auto MDIX)

(3)Quad Port

•         H2017NL：2 x Transformer + Shared Choke

* X =Extended Temperature -40 to +85^oC

•         10/100 TX (Surge protection)

(1) H1502NL：Single port Transformer + chip side TVS

(2) H1508NL：Quad ports Transformer+ chip side TVS

•         Gigabit PoE+

(1)HX6096NL：PoE+ (2 x 0.7A),Single Giga

(2)HX6106NL：PoE+ (2 x 0.85A @ 57V), Single Giga

* 無風扇系統應用方案：持續開機工作狀能下，只溫升7度

(3)H6080ANL：PoE+ (2 x 0.72A @ 57V), Dual Giga

(4)H6154NL： PoE+ (2 x0.72A @ 57V), Dual Giga

•         Single port 10G Base-T

(1)   H7137NL

(2)   H7019NL

•         Single port 6KV Giga PoE+ ICM

(1)   JK0-0209NL：PoE+ 750mA, Single Giga, 10/700uS 6KV Surge Protection

(2)   JXK0-0209NL：-40~85 degree C extended temp

•         Single port Integrate Connector Module

(1) JK0-0177NL：Single port Giga, PoE+ (2 channel)

(2) JK0-0190NL：Single port Giga, PoE+ (4 channel)

(3) JT4-1108HL：Single port 10G BT with LED

•         1x2 Integrate Connector Module

(1)   JX80-0019NL：1x2 ports,low profile10/100BT w/o LED, -40~85 degree C

(2)   J8064E62NL：1x2 ports,low profile10/100BT with LED

(3)   JGL-0001/4NL：1x2 ports,low profile10/100/1000BT

•         1x4 Giga Integrate Connector Module

(1) J1N-00xxNL：Low Profile 12.2mm High,Tab-Up Gigabit ,PoE/PoE+

(2) J0N-0013NL：Tab-Down Gigabit ,PoE/PoE+

(3) J0N-0035NL ：Tab-Down Gigabit ,PoE/PoE+,6KV surge protection

•         Multi-Port Giga Integrate Connector Module

(1)J0B-0384NL：2x4 Giga PoE+ (2 channel)

(2)J0B-0386NL：2x6 Giga PoE+ (2 channel)

(3)J0B-0388NL：2x8 Giga PoE+ (2 channel)

•         Multi-Port ESD and 6kV Surge protection Integrate Connector Module

(1)   JX0B-3541NL：2x4 Giga ,-40~85 degree C with or w/o POE+,6KV Surge protection

(2)   J0B-3040NL：2x4 10/100 TX, POE, 6KV Surge protection

(3)   JX20- 0211NL：2x6 10/100 TX, -40~85 degree C, 6KV Surge protection

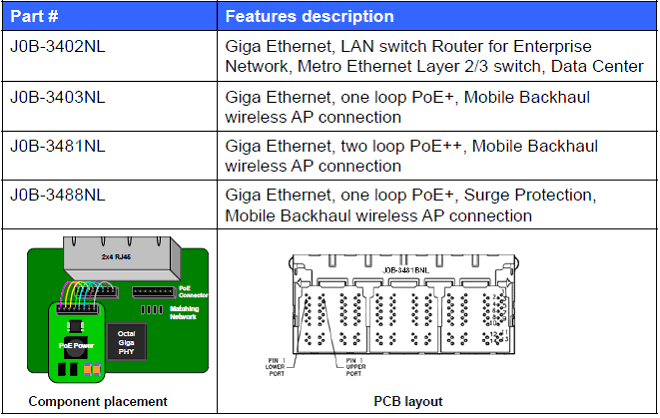

•         2x6 Giga Multi platform design

有興趣者請與我司連絡，謝謝。  E-mail: sales@quadrep.com.tw
