2013 -- Pulse Electronics Corporation (NYSE: PULS), a leading provider of electronic components, introduces a series of Industrial Ethernet solution in 2013. There are series solution for high power transformer 、CAT5e、CAT6 Ethernet and high integrate connector module. All kinds of solutions are released for designer to design flexibly.

Higher Requirements Features

•         Extended Temp

•         ESD protection

•         Lighting surge protection

•         Higher integration to provide more features

•         Power over Ethernet

Standard part number summary as below：

•         10/100 TX Single extended temp

(1)HX0068ANL ：Low profile 、Auto MDIX

(2)HX1188NL ：TC

(3)HX1198NL ：CT

•         10/100 TX PoE

(1)Single Port

•         H1187NL：1x Transformer only

•         H1197NL   ：2x Transformer only

•         H2019NL   ：2x Transformer + Shared Choke

•         HX2019NL        ：2x Transformer + Shared Choke

•         HX2326NL        ：2x Transformer/3 Wires Choke +Auto-Transformer

(2)Dual Port

•         H2005ANL：2 x Transformer + Auto-Transformer

•         H2006ANL：2 x Transformer + Shared Choke

•         H2009NL： 2 x Transformer Auto-Transformer (Auto MDIX)

(3)Quad Port

•         H2017NL：2 x Transformer + Shared Choke

* X =Extended Temperature -40 to +85^oC

•         10/100 TX (Surge protection)

(1) H1502NL：Single port Transformer + chip side TVS

(2) H1508NL：Quad ports Transformer+ chip side TVS

•         Gigabit PoE+

(1)HX6096NL：PoE+ (2 x 0.7A),Single Giga

(2)HX6106NL：PoE+ (2 x 0.85A @ 57V), Single Giga

* Enclosed Fanless system application, temp raise 7degree C in continue power. (3)H6080ANL：PoE+ (2 x 0.72A @ 57V), Dual Giga

(4)H6154NL： PoE+ (2 x0.72A @ 57V), Dual Giga

•         Single port 10G Base-T

(1)   H7137NL

(2)   H7019NL

•         Single port 6KV Giga PoE+ ICM

(1)   JK0-0209NL：PoE+ 750mA, Single Giga, 10/700uS 6KV Surge Protection

(2)   JXK0-0209NL：-40~85 degree C extended temp

•         Single port Integrate Connector Module

(1) JK0-0177NL：Single port Giga, PoE+ (2 channel)

(2) JK0-0190NL：Single port Giga, PoE+ (4 channel)

(3) JT4-1108HL：Single port 10G BT with LED

•         1x2 Integrate Connector Module

(1)   JX80-0019NL：1x2 ports,low profile10/100BT w/o LED, -40~85 degree C

(2)   J8064E62NL：1x2 ports,low profile10/100BT with LED

(3)   JGL-0001/4NL：1x2 ports,low profile10/100/1000BT

•         1x4 Giga Integrate Connector Module

(1) J1N-00xxNL：Low Profile 12.2mm High,Tab-Up Gigabit ,PoE/PoE+

(2) J0N-0013NL：Tab-Down Gigabit ,PoE/PoE+

(3) J0N-0035NL ：Tab-Down Gigabit ,PoE/PoE+,6KV surge protection

•         Multi-Port Giga Integrate Connector Module

(1)J0B-0384NL：2x4 Giga PoE+ (2 channel)

(2)J0B-0386NL：2x6 Giga PoE+ (2 channel)

(3)J0B-0388NL：2x8 Giga PoE+ (2 channel)

•         Multi-Port ESD and 6kV Surge protection Integrate Connector Module

(1)   JX0B-3541NL：2x4 Giga ,-40~85 degree C with or w/o POE+,6KV Surge protection

(2)   J0B-3040NL：2x4 10/100 TX, POE, 6KV Surge protection

(3)   JX20- 0211NL：2x6 10/100 TX, -40~85 degree C, 6KV Surge protection

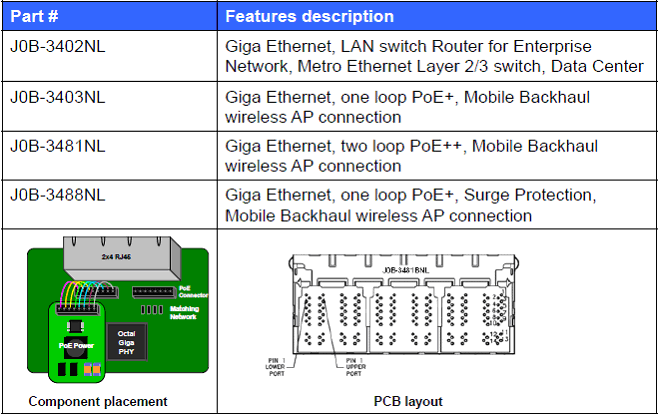

•         2x6 Giga Multi platform design
